Product Description

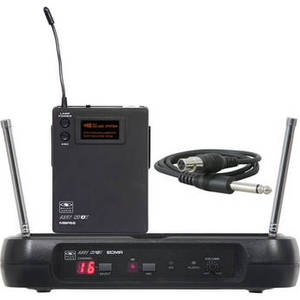

The ECMR/52GTR Wireless Microphone System from Galaxy Audio includes the ECMR (receiver), MBP52 (body pack transmitter), AS-GTR (guitar cable), power supply and 1/4-1/4" output cable. Everything you need for a great wireless microphone system.
With a 200' (61 m) range, the system can work in the most demanding environments. The ECMR has 16 selectable channels, diversity antennas, which are mounted to the front of the rugged plastic casing and allows for an IR sync. The MBP52 body pack transmitter has a 0/-10/mic selector switch.
| System | Channels: 16 Frequency range: CODE D 584-607MHz Code L: 655-679MHz Transmitter output level: 10dBm Band: UHF Operating range: Under typical conditions 150' (50m) Note: Actual range depends on RF signal absorption, reflection and interference Audio frequency response: +/-3dB 70Hz-16KHz Total harmonic distortion: +/-30KHz deviation 1KHz tone <1% Dynamic range: >90dB A-weighted Operating temperature: Range 14-122ºF (-10-50 Cº) |
| Receiver | Audio output level: +/-30kHz deviation, 1KHz tone) XLR connector (into 600 ohms load) -12dBV 1/4" connector (into 3 kohms load) -18dBV |
| Impedance | XLR connector 200 ohms 1/4" connector 1 kohms |
| Output | XLR output: Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio Pin 3: No audio |
| Sensitivity | -93dBm for 30dB |
| Image Rejection | < 90dB |
| Power Requirements | 13.5 VDC at 300mA, supplied by external power |
| Dimensions (H x W x D) | 1.8 x 9.3 x .8" (44.5 x 235 x 121mm) |
| Weight | 0.9 lb. (0.4kg) |
| Transmitter | Body pack |
| Maximum Audio Input Level Analog | 0-10dBV |
| Gain | Mic/0/-10dB |
| Impedance | 5 kohms |
| Power Requirements | 2 x AA size alkaline or rechargeable batteries |
| Battery Life | About 8 hours |
| Dimensions (H x W x D) | 3.3 x 2.6 x 1" (85 x 65 x 24mm) |
| Weight | 3 oz. (85 g) |
| Cable | Guitar 1/4" cable (AS-GTR): Guitar/instrument cable, TA3F connector, works with all Galaxy body pack transmitters. Use with any guitar or bass guitar. 1/4" to mini XLR connector |
