Product Description

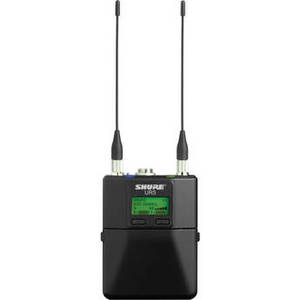

The Shure UR5 Portable Diversity Receiver features Shure's UHF-R Class Technology and is well suited for professional wireless microphone applications in ENG / EFP, broadcast, sound design, film and much more. The portable UR5 is capable of 2400 selectable UHF frequencies over the 60MHz bandwidth, full bandwidth scan and sync, Audio Reference Companding for crystal clear sound, and a transmission range of up to 492' (150m) line-of-sight.
The UR5 operates on either 12V DC or battery (2x AA) power, and the SB900 custom lithium ion rechargeable battery pack is available as an option. Shure's MTx (Multi-Transmitter) mode allows users to program multiple settings, and have the UR5 setup for use with various transmitters with the touch of a button. Additional features include, headphone monitoring output jack, mic and aux-level balanced output, tone generator and more.
| Carrier Frequency Range | 470-952 MHz (varies by region) |
| Modulation | FM, ±45 kHz maximum deviation |
| Antenna | Switching diversity |
| Dynamic Range | >100 dBm=, A-weighted |
| RF Sensitivity | -106 dBm for 12 dB SINAD, -88 dBm for 30 dB SINAD |
| Image Rejection | >100 dB (typical) |
| Spurious Rejection | >80 dB (typical) |
| Squelch Threshold | 30 dB SINAD (±3 dB) normal setting |
| Channels | Per band: 40 (band dependent) |
| Tuning | 60-72 MHz (band dependent) |
| Frequency Stability | ±2.5 ppm |
| Pilot Tone | UHF-R® Mode: 32 kHz tone key pilot |
| Frequency Response | 50Hz - 16kHz |
| Audio THD + Noise | (ref. ±20 kHz deviation @1 kHz) < 0.4% THD (typical) |
| Signal-to-Noise Ratio | 90dB (typical) |
| Compandor System | Patented Shure Audio Reference Companding |
| Audio Outputs | Camera Output Electronically balancedConfiguration: mono, TA3 Maximum output power: adjustable -35dBV to +10dBV peakPin Assignment: Pin 1 = Gnd, Pin 2 = Hot, Pin 3 = Cold Headphone OutputAdjustable range Configuration: Unbalanced mono (L=R), 1/8"Minimum load impedance: 9.5 ohms Impedance: 3.5 ohmsMaximum output power: 100mW Pin Assignment: Tip = Hot, Ring = Hot, Sleeve = Gnd |
| Operating Temperature | 0°to +135° F (-18°C to +57°C) |
| Battery Life | 4 hours AA Alkaline 8 hours Shure Rechargeable Lithium Ion |
| Weight | 7.05oz (200g) (with AA batteries) |
| Dimensions | 3.26 x 2.55 x 0.88" (83 x 65 x 22mm) |
