Product Description

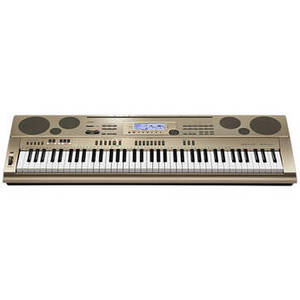

The AT-5 Oriental Portable Keyboard by Casio offers 76 piano-style keys and is equipped with over one thousand tones and rhythms. This keyboard however is particularly special as it features 54 Oriental tones and 83 Oriental accompaniment rhythms making it ideal for Asian influenced music performance and composition. It also features scales used in Oriental music so you can adjust the tuning of each note or apply them to auto accompaniments to get that authentic sound of the Orient.The AT-5 also features a sixteen track song sequencer and an eight track pattern sequencer. Audio from the keyboard, song or pattern sequencer, auto accompaniments or even the instrument and mic inputs can be recorded directly to SD memory card. Saved audio files can be transferred to a computer via USB for long-term storage and with Special Data Manager 6.0, you can convert the musical data stored on the keyboard to WAV for playback on most any computer and CD player.
| Keyboard | Keys: 76 standard size Touch Response: 2 types, Off |
| Polyphony | 64 notes (32 for certain tones) |
| Tones | Built-in tones: 800 User tones: up to 100 (tone editor) Functions: layer, split |
| Effects | Reverb: 1 to 10, off Chorus: 1 to 5 |
| DSP | Preset DSP: 100 User DSP: up to 100 |
| Oriental Scale | Scale fine tune: +/-99 cents Preset scales: 17 Scale memory: 4 |
| Metronome | Beats per measure: 0, 2 to 6 Tempo range: 30 to 255 |
| Auto Accompaniment | Built-in rhythms: 250 User rhythms: up to 100 (pattern sequencer) |
| Demo Songs | 5 |
| Registration | 96 (6 setups x 16 banks) |
| Sequencer | Real-time recording, playback Punch-in recording Keyboard Play: 5 songs, 17 tracks Memory Capacity: Approximately 30,000 notes (total for 5 songs) |
| Record and Playback | Requirement: An SD or SDHC memory Recording: Recording of keyboard play, song sequencer song playback, sound input from MIC IN jack and INST IN jack Up to 5 audio files (maximum recording time: approximately 13 minutes for a single audio file) Playback: Up to 999 files (including files used for recording) |
| Mixer | 32 parts (A01-A16/B01-B16) card, 2GB to 32GB Master parameters, DSP parameters, part parameters, MIC/INST parameters |
| Other Functions | Transpose: +/-1 octaves (-12 to +12 semitones) Octave shift: upper 1 / upper 2/ lower ±2 octaves Tuning: A4 = 415.5 - 440.0 - 465.9Hz Music preset: 305 built-in, plus 100 user presets One touch preset: 250 Auto harmonize: 12 types Arpeggiator: 150 types |
| MIDI | 16 multi-timbre received, GM Level 1 standard |
| Pitch Bend Range | 0 to 24 semitones |
| Memory Cards | Supported Memory Cards: SD or SDHC memory cards, 2GB to 32GB Functions: SMF playback, file storage, file recall, file delete, card format |
| Inputs/Outputs | USB port: Type B Sustain/assignable jack: standard jack (sustain, sostenuto, soft, start/stop) Phones jack: stereo standard jack Line out R, L/Mono jacks: 2 x standard jack Output impedance: 2.3kΩ, output voltage: 1.5V (RMS) max Audio in jack: stereo mini jack Input impedance: 9kΩ Input sensitivity: 200mV Inst in jack: standard jack Input impedance: 9kΩ Input sensitivity: 200mV Mic In jack: standard jack (connect a dynamic microphone only) Input impedance: 3kΩ Input Sensitivity: 10mV |
| Power | 2-way Batteries: 6 D-size zinc-carbon batteries or alkaline batteries Battery life: approximately 4 hours continuous operation on alkaline batteries AC adaptor: 12V DC (AD-A12150LW)Auto power off: approximately 6 minutes after last key operation during battery use, approximately 4 hours after last key operation during AC adaptor use. Auto power off can be disabled |
| Speakers | 2 x 4.72" (12 cm) 7 watts 2 x 1.18" (3 cm) 7 watts |
| Power Consumption | 12V - 18W |
| Dimensions | 3.89 x 1.30 x 0.48' (118.7 x 39.9 x 14.9 cm) |
| Weight | Approximately 19.6 lb (8.9 kg) (without batteries) |
