Product Description

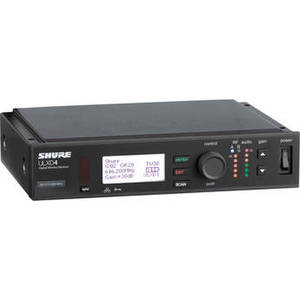

The ULXD4 Digital Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's G50 frequency band that operates between 470 to 534 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.
| RF Input Specs | |
| Spurious Rejection | >80 dB, typical |
| Connector | BNC |
| Impedance | 50 Ohms |
| Bias Voltage(s) | 12 to 13 VDC, 170 mA maximum, per antenna |
| Audio Output | |
| Gain Adjustment Range | -18 to 42 dB in 1 dB steps (plus Mute setting) |
| Configuration | 1/4" (6.3 mm): Impedance balanced (Tip= audio, Ring= no audio, Sleeve= ground) XLR: balanced (1= ground, 2= audio +, 3= audio −) |
| Impedance | 1/4" (6.3 mm): 100 Ohms (50 Ohms Unbalanced) XLR: 100 Ohms |
| Full Scale Output | 1/4" (6.3 mm): 12 dBV XLR: LINE setting= 18 dBV, MIC setting= -12 dBV |
| Mic/Line Switch | 30 dB pad |
| Phantom Power Protection | 1/4" (6.3 mm): Yes XLR: Yes |
| Networking | |
| PoE | No, protected |
| Network Interface | Single-port Ethernet 10/100 Mbps |
| Network Addressing Capability | DHCP or Manual IP address |
| Maximum Cable Length | 328' (100 m) |
| General | |
| Housing | Steel |
| Power Requirements | 15 VDC @ 0.6 A, supplied by external power supply (tip positive) |
| Dimensions (HxWxD) | 7.75 x 6.75 x 1.65" (197.00 x 171.00 x 42.00 mm) |
| Weight | 2 lb (913 g) without antennas |
