Product Description

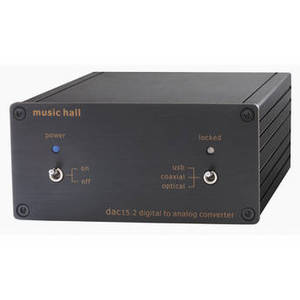

Music Hall's dac15.2 Digital to Analog Converter offers an ideal way to convert digital to analog signals for significantly improved sound quality. The unit contains three digital inputs; a USB port, digital optical and coaxial audio. The dac15.2 is housed in an extruded aluminum chassis designed to resist stray magnetic fields and buffer the sensitive electronics inside against damage or interference. It's great for computers, Sonos, Apple TV, Airport Express, or any other digital streaming device.
| Inputs | Digital optical x 1 Digital coaxial x 1 USB x 1 |
| Outputs | Analog audio (L/R) x 1 Digital coaxial x 1 |
| Audio THD + Noise | < 0.0012% (20 Hz 20 kHz) |
| Output Level | RCA 2.1V Coaxial 0.5Vp-p (@75 ohm) |
| Frequency Response | DC 20 kHz +/-0.5 dB |
| Signal to Noise Ratio | > 110 dB |
| Power Dissipation | < 10W |
| Dynamic Range | > 115 dB (24 bit) > 96 dB (16 bit) |
| Crosstalk | < -105 dB |
| Operating Temperature | 32 to 104° F (0 to 40° C) |
| Input Signals | USB input accepts 24 bit / 96 kHz All other inputs accept signals up to 24 bit / 192 kHz |
| Compliance | FCC |
| Chassis | Extruded aluminum |
| Power Supply | AC 100-240V 50/60 Hz |
| Dimensions (WxDxH) | 4.2 x 6.0 x 2.1" (107 x 152 x 52 mm) |
| Weight | 2 lb (0.9 kg) |
