Product Description

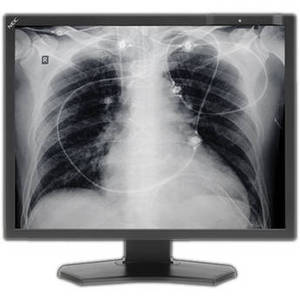

The 21" Grayscale 3-Megapixel Medical Diagnostic Monitor is designed for healthcare professionals viewing medical imaging and PACS. This 3.0 Mp IPS model features out-of-the-box DICOM calibration and uniformity control for accurate imaging across its screen. Imaging specs include a 2048 x 1536 native resolution, 900:1 contrast ratio, and calibrated brightness of 400cd/m2.
The built-in ambient light sensor automatically adjusts the display's brightness values, while the DVI-I interface and a built-in USB 2.0 hub allow for connecting peripherals. Adjustable height, pivot, tilt, and swivel capabilities allow the user to gain the best possible view in any room, with a 176° viewing angle in both horizontal and vertical orientations.
With 1024 shades of gray out of 48961, this dedicated grayscale monitor will allow you to more accurately see and detect fine details in high quality grayscale images. Its integrated technologies add further value and versatility, as it calibrates and adjusts to varying conditions and images for you, so you can focus on the imagery rather than the hardware.
| Panel/Display | |
| Type | Medical-grade diagnostic display |
| Viewable Size | 21.3" |
| Brightness | Calibrated: 400cd/m2Max: 1450cd/m2 |
| Contrast Ratio | 900:1 |
| Viewing Angle | 176° vertical, 176° horizontal (88U/88D/88L/88R) @ CR > 10 |
| Pixel Dot Pitch | 0.21 mm |
| Pixels Per Inch | Native Resolution: 120 ppi |
| Response Time | 13 ms |
| Colors Supported | Type: Grayscale1024 levels of gray out of a palette of 48961 |
| Signal | |
| Frequency | Horizontal: 31.5 - 99.4 KHz / 126.3 KHzVertical: 50 - 85 Hz / 30 Hz |
| Resolution | 2048 x 1536 |
| Connections | DVI-DDisplayPort |
| Speakers | N/A |
| Mount | VESA 100 x 100mm |
| General | |
| Tilt / Swivel / Pivot | Yes |
| Calibration | DICOM GSDF calibrated |
| Stand | Height-adjustable stand USB hub (1x up, 2x down) |
| Certifications | C-UL, EN 60601-1, ISO 9241-307, ISO 13406-2, US Mercury Regulations, ECMA-370, SB50 (California), WEEERoHS, PC Recycle, CCC, CEL Grade 1, AAPM-TG18, DIN V 6868-57, FDA 501(k) |
| Power Consumption | On: 105 WPower Savings mode: < 2 W |
| Environmental Requirements | Operating temperature: 41 to 95° F (5 to 35° C)Operating humidity: 30 to 80%Operating altitude: 9842' (3000 m)Storage temperature: 14 to 140° F (-10 to 60° C)Storage humidity: 10 to 85%Storage altitude: 40,000' (12,192 m) |
| Dimensions (W x H x D) | With stand: 18.4 x 14.9 - 20.8 x 9.0" (46.8 x 37.8 - 52.8 x 22.8 cm)Without stand: 18.4 x 14.2 x 4.1" (46.8 x 36.2 x 10.4 cm) |
| Weight | With stand: 23.6 lb (10.7 kg)Without stand: 16.5 lb (7.5 kg) |
