Product Description

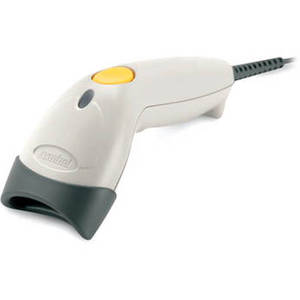

The durable Symbol LS1203 Handheld Scanner from Motorola features a lightweight, ergonomic design that is drop-resistant up to 5.0'. The barcode scanner features a wide working range - from contact to 8.0" (20.32 cm) for easy and convenient use. The reader's design takes the guesswork out of proper positioning and angling and thanks to its wide angle of coverage (side-to-side, up and down, and tilt), it's easy to learn how to use and it will shorten the lines at the register or speed up any other job. Additionally, the reader can be used in automatic or trigger-operated with easy switching between the 2. The included stand can be used for easy hands-free operation. The scanner is compatible with many barcode formats including UPC, EAN, Code 39, Code 128, Code 93, MSI, Code 11, and IATA codes.
| Scanner Type | Single line |
| Resolution | 30% minimum reflectance |
| Scan Rate | 100 scans/second |
| Working Distance | 13.0 mil (100% UPC/EAN): 0.0 to 7.0" (0 to 17.78 cm) 5.0 mil (Code 39): 2.5 to 4.0" (6.35 to 10.16 cm) |
| Print Contrast | 30% minimum |
| Tilt | ± 30° |
| Pitch | ± 65° |
| Skew | ± 60° |
| Bar-Code Types | UPC/EAN, UPC/EAN with Supplementals, GS1-128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar variants, Chinese 2 of 5 |
| Interfaces Supported | RS-232, Keyboard Wedge, USB |
| Ambient Light Immunity | Immune to direct exposure of normal office, factory lighting, and direct exposure to sunlight |
| Drop Resistance | Withstands multiple 5.0' (1.52 m) drops to concrete |
| Power Source | USB bus power |
| Power Requirements | 5 ±10% V DC @ 100 mA (< 35 mA in standby) |
| Sound | 3 user-selectable beeper volumes, 3 user-selectable beeper tones |
| Electrostatic Discharge | Air Discharge: 15 kV Contact Discharge: 8 kV |
| Certifications | Electrical Safety: UL1950, CSA C22.2 No. 950, EN60950/IEC950 Laser Safety: IEC Class 1 EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori |
| Temperature / Humidity | Operating Temperature: 32 to 122 °F (0 to 50 °C) Storage Temperature: -40 to 158 °F (-40 to 70 °C) Humidity: 5 to 95% |
| Light Source | 650 nm laser diode |
| Dimensions (LxWxH) | 7.1 x 2.4 x 2.4" (18.0 x 6.0 x 6.2 cm) |
| Weight | 4.3 oz. (122 g) |
