Product Description

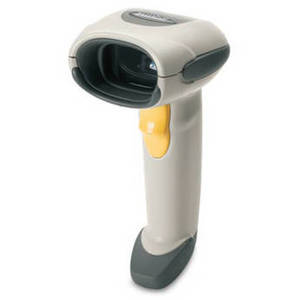

The durable Symbol LS4208 Handheld Scanner from Motorola features a lightweight, ergonomic design that is drop-resistant up to 5.0'. The barcode scanner features a wide working range - from contact to 19.0" (48 cm) for easy and convenient use. The reader's design takes the guesswork out of proper positioning and angling and thanks to its wide angle of coverage (side-to-side, up and down, and tilt), it's easy to learn how to use and will shorten the lines at the register or speed up any other job. Additionally, the reader can be used hands-free as well as trigger-operated with easy switching between the 2. The scanner is compatible with many barcode formats including UPC, EAN, Code 39, Code 128, Code 93, MSI, Code 11, and IATA codes.
| Scanner Type | Handheld laser scanner |
| Scan Sensor | 650 nm laser diode |
| Frequency | 50 Hz |
| Scan Rate | 200 decodes/second |
| Working Distance | Code 39 - 5.0 mil: 1.5 to 5.5" (3.81 to 13.97 cm) Code 39 - 10.0 mil: 0 to 14.0" (0 to 35.56 cm) 100% UPC/EAN - 13.0 mil: 0 to 19.0" (0 to 48.26 cm) Code 39 - 20.0 mil: 0 to 29.0" (0 to 73.66 cm) |
| Coverage | At 5.0" (12.7 cm): ~0.5" (1.27 cm) multi-line aiming coverage At 10.0" (25.4 cm): ~ 1.0" (2.54 cm) multi-line aiming coverage |
| Motion Tolerances | Horizontal Velocity: 200" (508 cm)/second Vertical Velocity: 200" (508 cm)/second Angular Velocity: 200" (508 cm)/second |
| Print Contrast | 25% minimum reflective difference |
| Tilt | ±35° |
| Pitch | ±60° |
| Skew | ±60° |
| Bar-Code Types | UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, GS1 DataBar (formerly RSS) Variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell, IATA, Bookland EAN, Code 32` |
| Interfaces Supported | RS-232C: Standard, Nixdorf, ICL, & Fujitsu USB: Standard, IBM SurePOS, Macintosh IBM 468x/469x Keyboard Wedge Laser/Wand Emulation Synapse Adaptive Connectivity |
| Ambient Light Immunity | Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions |
| Drop Resistance | Withstands repeated 6.0' (1.8 m) drops to concrete |
| Power Source | Host or external power |
| Power Requirements | 5.0 ±10% V DC @ 140 mA (< 35 mA on standby) |
| Certifications | Electrical Safety: UL1950, CSA C22.2 No. 950, EN60950/IEC950 Laser Safety: CDRH Class II, IEC Class 2 EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA |
| Temperature / Humidity | Operating Temperature: 32 to 122 °F (0 to 50 °C) Storage Temperature: -40 to 158 °F (-40 to 70 °C) Humidity: 5% to 95% (non-condensing) |
| Dimensions (WxDxH) | 2.7 x 3.7 x 6.7" (6.8 x 9.3 x 17 cm) |
| Weight | 6.4 oz. (181 g) |
