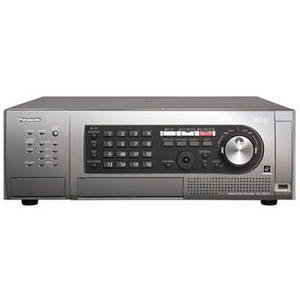

WJ-HD616 16-Channel H.264 Digital Disk Recorder (3TB, NTSC)
Product Description
The WJ-HD616 16-Channel H.264 Digital Disk Recorder from Panasonic features HDMI and Full HD display support. It uses H.264 compression along with Panasonic’s UniPhier system to deliver high-quality signal output along with high compression encoding simultaneously. It has a maximum storage capacity of 3TB. Additionally, it also supports SD5Link (Super Dynamic 5 Link) and i-VMD (intelligent-Video Motion Detection) alarm, which provides disk saving and easy search.
| Audio / Video IF | |
| TV System | NTSC |
| Video Inputs | 16 x 1.0 V [p-p] / 75 Ω composite video inputs (BNC), 8 x multiplexed control data (1 to 8 channel) |
| Video Outputs | 16 x 1.0 V [p-p] / 75 Ω composite video signal (BNC), active loop through outputs Monitor Outputs: 2 x HDMI, 2 x 1.0 V [p-p] / 75 Ω composite video signal (BNC) Video Output (Front RCA): 1 x 1.0 V [p-p] / 75 Ω composite video signal |
| Audio Inputs | 4 x -10 dBv, 10 KΩ (RCA) (1 to 4 channel) |
| Audio Outputs | Rear: 1 x -10 dBv, 600 Ω Front: 1 x -10 dBv, 600 Ω |
| Audio / Video Format | |
| Recording | H.264 (high profile), frame (720 x 480 pixels), field (720 x 240 pixels) |
| Network | H.264 (high profile) QVGA (320 x 240 pixels): Recording independent Field/Frame: Recording dependent |
| Frame Rate | 240 ips at field, 120 ips at frame |
| Main Unit | |
| Camera Control | Pan/Tilt, Zoom, Focus, Iris, Preset position call (up to 256), Auto mode |
| Mode | 4 / 7 / 9 / 12 / 16 split screen display |
| External Storage | DVD±R (optional), SD (SDHC) |
| Supported Web Browsers | Microsoft Internet Explorer 7.0 (Windows Vista Business 32-bit), Internet Explorer 6.0 SP2 (Windows XP Home/Professional SP2) |
| Network | |
| Interface | 2 x 10Base-T / 100Base-TX (RJ-45) (maintenance, network) |
| Client | 8 at a time |
| Registration | Up to 32 users |
| Alarm/Events | 16 x terminal inputs, 16 x camera alarm, PS-Data |
| External IF | |
| Alarm | 16 x alarm inputs (25-pin D-sub, make contact, N.O./N.C.) 16 x alarm outputs (25-pin D-sub, open collector, N.O./N.C) 1 x alarm reset input, 1 x alarm suspend input |
| External Storage | 3 x high speed serial interface, only for WJ-HDE400 Extension Unit (sold separately) |
| Recording | Emergency recording input, external recording mode input |
| Time | Time adjustment input/output |
| Controls | Sequence switching signal input Power outage detection output, shut down ready output |
| Controller | 2 x RS-485 (RJ-11) PS-Data compatible for control from WV-CU650 or Matrix Switcher WJ-SX650 (both sold separately) RS-485 Camera Interface: 2 x RS-485 (RJ-11), 2/4 wire, half duplex, for 1 to 16 channels |
| Mouse | 1 x USB Mouse port (front) |
| Built-In SD Card Slot | 1 x SD/SDHC memory card slot (front) |
| HDD | |
| Storage | 3 TB |
| Internal HDD | Up to 4 HDDs, maximum 31 HDDs (with 3 x optional WJ-HDE400 extension units, 9 x HDDs installed in each unit) |
| RAID | RAID5/RAID6 supported with WJ-HDB601 (sold separately) |
| Power Source | 120 VAC, 60 Hz |
| Power Consumption | 130 W |
| Safety/EMC Standard | UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA) |
| Operating Temperature | 41 to 113°F (5 to 45°C) |
| Humidity | Less than 85 % (without condensation) |
| Dimensions (W x H x D) | 16.94 x 5.19 x 15.75" (430.28 x 131.83 x 400.05 mm), excluding rubber feet and projections |
| Weight | 30.86 lb (14.00 kg) without HDD (factory default) 37.48 lb (17.00 kg) with 4 HDDs |
