Product Description

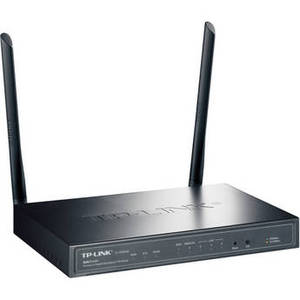

The SafeStream Wireless N Gigabit Broadband VPN Router from TP-Link is a wireless VPN router equipped with one Gigabit WAN port, three Gigabit LAN ports, and one Gigabit WAN/LAN port. Along with wired Gigabit connectivity, this router also supports IEEE 802.11b/g/n wireless networking standards along with TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP protocols.
The SafeStream VPN Router features enhanced hardware providing a solid backbone to your network. With 8MB of flash memory and 64MB of DDRII RAM data flows through this router quickly and efficiently. The fanless design ensures this router will remain quiet even under the most demanding workloads. Also found on the outside of the router is a pair of detachable antennas for enhanced wireless connectivity reaching areas traditional routers cannot reach.
This router functions on the 2.4-2.4835GHz frequencies with an EIRP rating of <20dBm further enhancing the wireless signal strength. You can also take advantage of enhanced wireless WEP, WPA/WPA2, WPA-PSK/WPA2-PSK wireless encryption standards and guest network configuration capabilities.
The SafeStream VPN Router features enhanced hardware providing a solid backbone to your network. With 8MB of flash memory and 64MB of DDRII RAM data flows through this router quickly and efficiently. The fanless design ensures this router will remain quiet even under the most demanding workloads. Also found on the outside of the router is a pair of detachable antennas for enhanced wireless connectivity reaching areas traditional routers cannot reach.
This router functions on the 2.4-2.4835GHz frequencies with an EIRP rating of <20dBm further enhancing the wireless signal strength. You can also take advantage of enhanced wireless WEP, WPA/WPA2, WPA-PSK/WPA2-PSK wireless encryption standards and guest network configuration capabilities.
| Hardware Features | |
| Wireless Standards | IEEE 802.11b/g/n IEEE 802.3/3u/3ab |
| Protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |
| Interface | 1 x Gigabit WAN port 3 x Gigabit LAN ports 1 x Gigabit WAN/LAN port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) 1000BASE-T: UTP category 5, 5e cable (Max 100 m) |
| Flash Memory | 8 MB |
| DRAM | 64 MB (DDRII) |
| LED | PWR, SYS, WLAN, WAN, WAN/LAN, LAN |
| Button | Power On/Off, Wi-Fi On/Off, Reset |
| Fan Quantity | Fanless |
| Antenna | 2 x detachable 5 dBi antennas |
| Power Supply | External power adapter (output: 12 V DC / 1.0 A) |
| Performance | |
| Concurrent Sessions | 10,000 |
| NAT Throughput | 160 Mbps |
| IPsec VPN Throughput | 38 Mbps |
| Wireless Features | |
| Frequency | 2.4 - 2.4835 Ghz |
| EIRP | <20 dBm (EIRP) |
| Wireless Functions | Enable/Disable wireless radio, WDS bridge, WMM, Wireless statistics |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Guest Network | Yes |
| Multi-SSD | Up to 8 SSIDs |
| Basic Functions | |
| DHCP | DHCP Server/Client DHCP Reservation |
| MAC Clone | Modify WAN/LAN MAC address |
| Switch Setting | Port Mirror Rate Control Port Configuration Port VLAN |
| WAN Connection Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond |
| Advanced Functions | |
| Load Balance | Intelligent load balance Policy routing Protocol binding Link backup (timing, failover) Online detection |
| NAT Advanced Features | One-to-one NAT Multi-nets NAT Virtual server Port triggering UPnP FTP/H.323/SIP/IPsec/PPTP ALG |
| Routing | Static routing Dynamic routing (RIP v1/v2) |
| System Mode | NAT, Non-NAT, Classical routing |
| Traffic Control | IP/Port-based bandwidth control Guarantee and limited bandwidth Time-scheduled policy IP-based session limit |
| VPN | |
| IPsec VPN | 30 IPsec VPN tunnels LAN-to-LAN and client-to-LAN IPsec VPN Main, aggressive negotiation mode DES, 3DES, AES128, AES192, AES256 encryption algorithm MD5, SHA1 authentication algorithm Manual, IKE key management mode IPsec NAT traversal (NAT-T) Dead peer detection (DPD) Perfect forward secrecy (PFS) |
| L2TP VPN | 8 L2TP VPN tunnels L2TP VPN Server/Client L2TP over IPsec |
| PPTP VPN | 8 PPTP VPN tunnels PPTP VPN Server/Client PPTP with MPPE encryption |
| VPN Pass-Through | IPsec (ESP), PPTP, L2TP |
| Security | |
| ARP Inspection | Sending GARP packets ARP scanning by WAN/LAN IP-MAC binding |
| Application Control | IM, P2P, Web IM, Web SNS, Web media protocol/proxy blocking |
| Attack Defense | TCP/UDP/ICMP Flood DefenseBlock TCP Scan (Stealth FIN/Xmas/Null)Block Ping from WAN |
| Filtering | MAC filtering URL/keywords filtering Web content filtering (Java, ActiveX, cookies) |
| Management | |
| Maintenance | Web-based management interface Remote management Export & import configuration NTP synchronize Syslog support |
| Services | PPPoE server E-bulletin Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Other Specifications | |
| Certifications | CE, FCC, RoHS |
| System Requirements | Microsoft Windows 8/7/Vista/XP/2000, Mac OS, Linux-based operating System |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Dimensions (WxDxH) | 8.2 x 5.0 x 1.0" / 209 x 126 x 26 mm |
| Weight | Not specified by manufacturer |
