Product Description

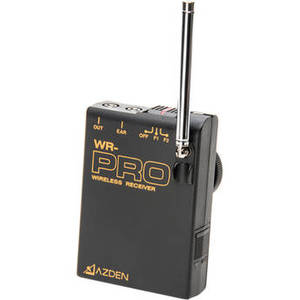

Designed for professional videographers on a limited budget and video hobbyists, the WR-PRO by Azden is a single-channel switchable VHF receiver with 2 selectable operating frequencies, allowing you to switch between frequencies if one is noisy or experiences interference. The wireless operating range is more than 200 feet. All receivers and transmitters in the PRO Series use the same circuitry and operate on the same 2 frequencies, F1 at 169.445 MHz and F2 at 170.245 MHz, making them interchangeable and allowing you to add to your system at any time.
| Reception Frequencies | F1: 169.445 MHz F2: 170.245 MHz |
| Type | Double superheterodyne |
| Sensitivity | 2 mV @ S/N of 40 dB |
| Battery | 1x 9 V |
| Power Consumption | 25 mA |
| Monitor Output | 1 V @ 30 ohms Modulation Frequency: 1 kHz Deviation: +/-7 kHz |
| Microphone Output | 8 mV with 10 kOhm load Modulation Frequency: 1 kHz Deviation: +/-7 kHz |
| Output Impedance | Mic: 300 ohms |
| Dimensions (H x W x D) | 3.30 x 2.40 x 0.85" (86.0 x 60.0 x 21.5 mm) |
| Weight | 4.5 oz (128 g), with battery |
