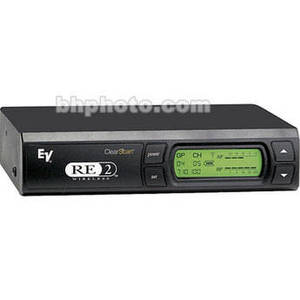

RE-2Pro Wireless UHF Diversity Receiver (Band A - 648 - 676 MHz)
Product Description
From the Electro-Voice RE-2 series wireless microphone system, the RE-2 receiver is designed to provide clear reception in any environment. UHF reception eliminates noise and interference caused by crowded frequency bands. Diversity technology further reduces drop-out and interference utilizing dual internal receivers competing for the strongest possible reception. Over 1,112 possible channels are user programmable in 25kHz steps over a 24MHz bandwidth. The ClearScan feature automatically searches for clear group and channel settings allowing quick setup. The RE-2 features a unique "Guitar" setting that optimizes a standard receiver / bodypack for use with a guitar.
| Type of Receiver | Synthesized PLL Agile UHF |
| RF Carrier Frequency Range | Band A - 648 - 676 MHz (TV Channels 43-48) |
| Approx. Working Range | 300' |
| Overall Frequency Response | 50 - 15kHz +/- 2dB |
| Signal-to-Noise Ratio | > 100dB (A) |
| # Of Channels | 1,112 - programmable in 25kHz steps across 24MHz bandwidth |
| Type of Output(s) | Balanced: 3-pin XLR - mic level Unbalanced: 1/4" Phone - adjustable line level |
| Headphone Monitoring | No |
| Power Requirements | 12V AC/DC 300mA |
| Battery Type/Approx. Life | AC powered only |
| Display | Backlit LCD |
| Mounting Options | Rack Mountable |
| Antenna Type | Detachable 1/4 wave |
| Dimensions | 1.72 x 7.50 x 5.90" (43.69 x 190.50 x 150.00mm) (H x W x D) |
| Weight | not specified by manufacturer |
