Product Description

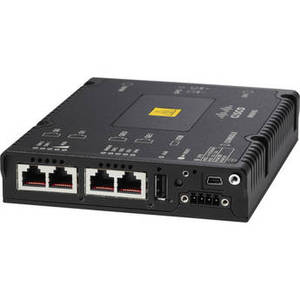

Designed to be a component of the Internet of Things (IoT), the 809 Industrial Integrated Services Router from Cisco works with a variety of wireless technologies including 4G LTE, 3.7G, 3.5G, 3G, and 2G offering wireless connectivity to a wide range of devices. In addition to enhanced wireless connectivity, this device comes equipped with built-in GPS tracking capabilities designed to support real-time location tracking for various IoT applications. Once installed, network administrators can implement a variety of QoS policies, some of which have the ability to support 4G multiple bearers. Inside this 809 Series Router you will find 2GB of DRAM and 8GB of flash memory to ensure smooth operation. On the exterior of the router are two Gigabit Ethernet ports, along with dedicated LED indicators depicting system status, WWAN status, and speed and link status for both Gigabit Ethernet ports. In addition to Gigabit Ethernet connectivity, this Cisco router comes equipped with two serial ports supporting SCADA, DNP3, T101-104, Raw Socket TCP and UDP, and SLIP protocols.
| Bands | LTE band 2 PCS 1900, band 4 AWS (1700/2100), band 17 (700), band 13 (700), band 25 extended PCS 1900 |
| Data Transfer Rates | Theoretical Download/Upload Speed 100 and 50 Mbps |
| Wireless Technologies | Cisco LTE 2.0 1900 MHz (band 2 PCS), 1700/2100 MHz (band 4 AWS), 700 MHz (band 17) Backward compatibility: ● UMTS and HSPA+: 850 (band 5),900 (band8), 1700/2100 (band 4 AWS),1900 (band2), and 2100 (band 1) MHz ● Quad-band EDGE, GPRS, and GSM: 800, 900, 1800 and 1900 MHz ● HSPA+ speed DL up to CAT20 (42.2 Mbps) and UL up to CAT6 (5.76 Mbps) ● DC-HSPA+ speed DL with CAT24 (42.2 Mbps) and UL up to CAT6 (5.76 Mbps) |
| LED Indicators | LED Indicators for 4G ● Received-signal-strength indication (RSSI) (green) ● WWAN (green) ● SIM status (green/yellow) ● GPS (green/yellow) ● SYS (green/yellow) ● VPN (green) |
| Memory | DRAM 2 GB Flash Memory 8 GB eMMC (4 GB usable) |
| IP Rating | IP30 |
| Interface Supported | Console Mini type-B USB; also supports remote 4G LTE diagnostics and monitoring tools WAN Interfaces Wireless WAN with multimode 4G LTE, 3.7G, 3.5G, 3G and 2G speeds LAN Interfaces 2 x 10/100/1000 Base-T Gigabit Ethernet ports LED System OK (green/amber) WWAN (green) Speed and link for Gigabit Ethernet WAN port (green) Speed and link for all Fast Ethernet LAN ports (green) Serial Interface 1 x RS-232 and 1 RS-232/RS-485 Supports asynchronous mode with speed up to 115.2 K Serial Protocol Support SCADA, DNP3, T101-104, Raw Socket TCP and UDP, SLIP |
| Mounting Options | Panel / door mount |
| MTBF | 440,370 hours |
| Power Consumption | Maximum Platform Power Consumption 29 W |
| Temperature | -40 to 140°F / -40 to 60°C in a sealed NEMA cabinet with no airflow -40 to 158°F / -40 to 70°C in a vented cabinet with 40 lfm of air -40 to 167°F / -40 to 75°C in a forced air enclosure with 200 lfm of air Type tested at 185°F / 85°C for 16 hours |
| Operating Altitude | 122°F / 50°C up to 5,000' / 1,524 m(above 5000' / 1,524 derate maximum operating temperature 34.7°F / 1.50°C per 1,000' / 305 m) Maximum altitude: 10,000' / 3,048 m |
| Certifications | ● UL 60950-1, 2nd edition ● CAN/CSA C22.2 No. 60950-1, 2nd edition ● EN 60950-1, 2nd edition ● CB to IEC 60950-1, 2nd edition with all group differences and national deviations ● EN50155 and IEC61850-3 ● NUP T2 shock testing, non-NEBS 3396 ● IEEE 1613 |
| EMC | EMC Emissions EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300- 386, EN61000-3-2, EN61000-3-3, and EN61000-6-1 EMC Immunity EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386 |
| Radio | Radio Immunity EN301 489-1, EN 301 489-7, and EN301 489-24 Cellular Radio EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24 and EN 301 908-13 |
| Power | Min/max Voltage 9.6-60 VDC input Max, Min Current 2 A (9.6 VDC), 0.4 A (60 VDC) |
| Dimensions | 1.15 x 5.05 x 6.27" / 29.21 x 128.00 x 159.20 mm |
| Weight | 2.31 lb / 1.05 kg |
