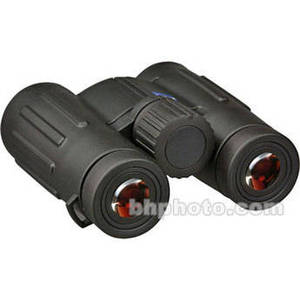

Product Description
This model maintains the optical technology of earlier iterations to ensure the overall visual performance users have come to expect from ZEISS. The optical path features phase-corrected Schmidt-Pechan roof prisms with dielectric mirror coatings. These prisms maximize acuity and light throughput while eliminating aberrations and distortion. The lenses are fully multi-coated with ZEISS' iconic T* anti-reflective multi-coatings and their LotuTec protective coating. T* multi-coatings increase light transmission while eliminating lens-flare and glare, while improving color rendition, clarity, and contrast. The LotuTec coating helps maintain the integrity of each external lens surface by repelling liquids and debris for a clear view in any conditions, weather, or situation.
The Victory's housing is made of a lightweight and strong magnesium-alloy, and is wrapped in a protective rubber armor that provides a slip-resistant grip. Its optical tubes are nitrogen-filled and O-ring sealed to deliver waterproof performance, while resisting internal fogging when moving through extreme temperature changes or environmental conditions.
| Prism Type | Roof |
| Magnification | 10x |
| Objective Lens Diameter | 32mm |
| Angle of View | 6.9° (actual) |
| Field of View | 362.2' @ 1000 yd / 120.7 m @ 1000 m |
| Minimum Focus Distance | 6.6' / 2 m |
| Exit Pupil Diameter | 3.2 mm |
| Eye Relief | 15.2 mm |
| Interpupillary Adjustment | 52.0 - 74.0 mm / 2.0 - 2.9" |
| Dioptric Correction | ±4 |
| Focus Type | Center |
| Tripod Mount | None |
| Dimensions | 4.6 x 4.6" / 11.7 x 11.7 cm |
| Weight | 19.75 oz / 560 g |
