Product Description

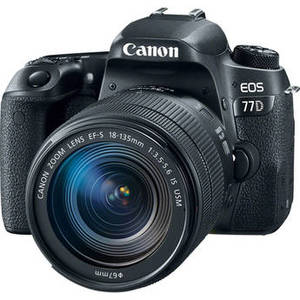

Comprising a versatile feature-set for both still photography and video recording, the EOS 77D DSLR from Canon blends advanced imaging capabilities with an intuitive design. Revolving around a 24.2MP APS-C CMOS sensor and DIGIC 7 image processor, images can be recorded using a broad native sensitivity range of ISO 100-25600, to suit shooting in a variety of lighting conditions, and a continuous shooting rate of 6 fps benefits working with moving subjects. The sensor's design also facilitates Dual Pixel CMOS AF, which uses phase-detection autofocus for quick, accurate, and smooth performance to suit both video shooting and stills use in live view. Alternatively, a 45-point all cross-type phase-detect AF system is also featured for shooting stills using the optical pentamirror viewfinder.
In regard to the physical design, a large 3.0" 1.04m-dot touchscreen LCD is featured for easy settings and playback control and live view monitoring, and it uses a vari-angle design to permit easier viewing from high and low working angles. A top LCD screen is also incorporated into the design for quickly recognizing your shooting settings, and a rear Quick Control dial affords more intuitive settings navigation. Additionally, built-in Wi-Fi with NFC is available for quick and convenient pairing with a smartphone or tablet for wireless image sharing, and Bluetooth is also featured for image sharing to and remote camera control from a mobile device.
In regard to the physical design, a large 3.0" 1.04m-dot touchscreen LCD is featured for easy settings and playback control and live view monitoring, and it uses a vari-angle design to permit easier viewing from high and low working angles. A top LCD screen is also incorporated into the design for quickly recognizing your shooting settings, and a rear Quick Control dial affords more intuitive settings navigation. Additionally, built-in Wi-Fi with NFC is available for quick and convenient pairing with a smartphone or tablet for wireless image sharing, and Bluetooth is also featured for image sharing to and remote camera control from a mobile device.
| Imaging | |
| Lens Mount | Canon EF Canon EF-S |
| Camera Format | APS-C (1.6x Crop Factor) |
| Pixels | Actual: 25.8 Megapixel Effective: 24.2 Megapixel |
| Max Resolution | 24 MP: 6000 x 4000 |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Sensor Type / Size | CMOS, 22.3 x 14.9 mm |
| File Formats | Still Images: JPEG, RAW Movies: H.264, MP4 Audio: AAC |
| Bit Depth | 14-Bit |
| Dust Reduction System | Yes |
| Memory Card Type | SD SDHC SDXC |
| Image Stabilization | Digital, 5-Way |
| Focus Control | |
| Focus Type | Auto & Manual |
| Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S) |
| Autofocus Points | Phase Detection: 45 (45 Cross-Type) |
| Viewfinder/Display | |
| Viewfinder Type | Pentamirror |
| Viewfinder Eye Point | 19.00 mm |
| Viewfinder Coverage | 95% |
| Viewfinder Magnification | Approx. 0.82x |
| Diopter Adjustment | -3 to +1 m |
| Display Screen | 3" Rear Touchscreen Swivel LCD (1,040,000) |
| Screen Coverage | 95% |
| Exposure Control | |
| ISO Sensitivity | Auto, 100-25600 (Extended Mode: 100-51200) |
| Shutter | 30 - 1/4000 Second , Bulb Mode |
| Remote Control | RA-E3, TC-80N3, RS-60E3, BR-E1 (Optional) |
| Metering Method | Center-Weighted Average Metering, Evaluative Metering, Partial Metering, Spot Metering |
| Exposure Modes | Modes: Aperture Priority, Manual, Program, Shutter Priority Metering Range: EV 1.0 - EV 20.0 Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV Steps) |
| Buffer/Continuous Shooting | Up to 6 fps at 24.2 MP for up to 190 Frames in JPEG Format Up to 6 fps at 24.2 MP for up to 21 Frames in Raw Format Up to 3 fps at 24.2 MP for up to 190 Frames in JPEG Format Up to 3 fps at 24.2 MP for up to 21 Frames in Raw Format |
| White Balance Modes | Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Flash | |
| Built-in Flash | Yes |
| Guide No. | 39.37'; (12 m) ISO100 |
| Max Sync Speed | 1 / 200 Second |
| Flash Compensation | -2 EV to +2 EV (in 1/3 or 1/2 EV steps) |
| Dedicated Flash System | eTTL |
| External Flash Connection | Hot Shoe |
| AV Recording | |
| Video Recording | Yes, NTSC/PAL |
| Video Format | 1920 x 1080p at 59.94 fps (60 Mb/s MP4 via H.264) 1920 x 1080p at 23.98, 29.97 fps (30 Mb/s MP4 via H.264) 1920 x 1080p at 29.97 fps (12 Mb/s MP4 via H.264) 1280 x 720p at 59.94 fps (26 Mb/s MP4 via H.264) 1280 x 720p at 29.97 fps (4 Mb/s MP4 via H.264) 640 x 480p at 29.97 fps (9 Mb/s MP4 via H.264) 640 x 480p at 29.97 fps (3 Mb/s MP4 via H.264) 1920 x 1080p at 29.97 fps (90 Mb/s MOV via iFrame) |
| Exposure Control | Auto: Shutter Speed, Aperture, ISO Manual: Shutter Speed, Aperture, ISO |
| ISO Sensitivity | Auto/Manual, 100 - 12800, Expandable to 25600 |
| Exposure Compensation | -3 EV to +3 EV (in 1/3 or 1/2 EV steps) |
| Focus | Auto Manual Continuous Auto |
| Max Video Clip Length | 1920 x 1080: 29 Minutes, 59 Seconds |
| Audio Recording | Built-In Mic: With Video (Stereo) Optional External Mic: With Video (Stereo) |
| Performance | |
| Start-up Time | 0.2 seconds |
| Shutter Lag | 0.07 seconds |
| Self Timer | 10 Seconds, 2 Seconds |
| Interval Recording | Yes |
| Connectivity | 1/8" Microphone, HDMI C (Mini), Mini-USB, USB 2.0 |
| Wi-Fi Capable | Yes |
| Power | |
| Battery | 1 x LP-E17 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1040 mAh |
| AC Power Adapter | ACK-E6N, ACK-E6 () |
| Operating/Storage Temperature | Operating 32 to 104°F (0 to 40°C) Humidity: 0 - 85% |
| Physical | |
| Dimensions (W x H x D) | 5.2 x 3.9 x 3.0" / 131.0 x 99.9 x 76.2 mm |
| Weight | 1.188 lb / 540 g |
| Kit Lens | |
| Focal Length | 18 - 135mm Comparable 35mm Focal Length: 28.8 - 216 mm |
| Aperture | Maximum: f/3.5 - 5.6 |
| Angle of View | 74° 20' - 11° 30' |
| Minimum Focus Distance | 1.28' (39 cm) |
| Elements/Groups | 16 / 12 |
| Autofocus | Yes |
| Image Stabilization | Yes |
| Filter Thread | Front: 67 mm |
| Dimensions (DxL) | Approx. 3.05 x 3.78" (77.4 x 96 mm) |
| Weight | 1.13 lbs (515 g) |
