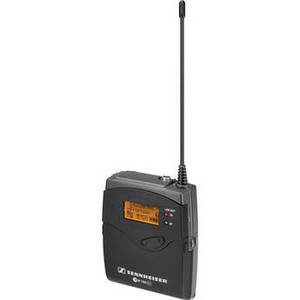

EK 100 G3 Wireless Camera-Mount Receiver (G: 566-608 MHz)
Product Description
The Sennheiser EK 100 G3 is a lightweight camera-mount receiver that features an all-metal housing. The unit has 1680 tunable UHF frequencies and synchronizes with G3 transmitters at the touch of a button. A 3.5mm audio output will provide clean output signal using the included adapter cables. The receiver operates on 2 standard AA batteries, and an optional 12 VDC adapter is also available. The included shoe-mount adapter allows you to mount the receiver on a camera for convenient portable use.
| Type of Receiver | EK 100 Camera-Mount Receiver |
| RF Carrier Frequency Range | G: 566-608 MHz |
| Approx. Working Range | Maximum 490' |
| Overall Frequency Response | 25 Hz - 18 kHz |
| Signal-to-Noise Ratio | Greater than 110 dB |
| # Of Channels | 1680 |
| Type of Outputs | Standard 3.5 mm Mini |
| Headphone Monitoring | None |
| Power Requirements | 2 x 1.5 V AA Batteries 6-10 Hours |
| Mounting Options | Camera Shoe Mount |
| Antenna Type | Single Flexible Antenna (M3 Type) |
| Dimensions (HxWxD) | 3.2 x 2.5 x 0.9" (81 x 64 x 23 mm) |
| Weight | 5.6 oz (160 g) |
