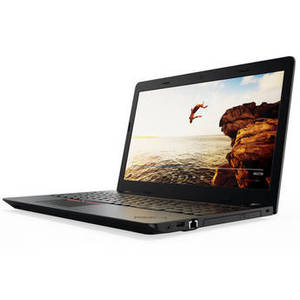

15.6" ThinkPad E570 Series Notebook


From Lenovo | Model #: LEE57020H500



See more in


15.6" ThinkPad E570 Series Notebook

Product Description

The 15.6" ThinkPad E570 Series Notebook from Lenovo is a business and security oriented system designed for the on-the-go professional. To ensure your security, it's outfitted with Windows 10 Pro, a fingerprint reader, and a TPM (Trusted Platform Module) chip, which encrypts your files. For performance, it has a 2.7 GHz Intel Core i7-7500U dual-core processor and 8GB of DDR4 RAM, which lets you efficiently multitask. Store your data in its 256GB Opal2 solid-state drive, which provides you with enhanced security, and boot and load files and applications within seconds.

Its 15.6" display features a 1920 x 1080 resolution and is built on an IPS (In-Plane Switching) panel, which offers vivid colors and wide viewing angles, so you can enjoy crisp and clear HD content. Driven by a dedicated NVIDIA GeForce GTX 950MX graphics card with 2GB of GDDR5 VRAM, the E570 can handle most graphical tasks and even light gaming. Other integrated features include a SuperMulti DVD drive for reading and writing optical media, 802.11ac Wi-Fi and Gigabit Ethernet to connect to the Internet, Bluetooth 4.1, USB 3.0 and 2.0 ports, a 4-in-1 media card reader, an HDMI port, a webcam, speakers, microphones, as well as a 3.5mm mic and headphone combo jack.
Performance
Processor Intel Core i7-7500U Dual-Core
Base Clock Speed 2.7 GHz
Max Boost Speed 3.5 GHz
Total Installed Memory 8 GB
Maximum Memory Capacity 32 GB
Memory Type DDR4 SDRAM
Memory Speed 2400 MHz
User-Replaceable Memory 1 x 8 GB
Available Memory Slots 1
Memory Slot Type 260-Pin SO-DIMM
Graphics Type Dedicated
Graphics Card NVIDIA GeForce GTX 950MX with 2 GB GDDR5 VRAM
Display
Panel Type IPS
Size 15.6"
Aspect Ratio 16:9
Native Resolution 1920 x 1080
Touchscreen None
Finish Not Specified by Manufacturer
Drives
Available Slots Not Specified by Manufacturer
Total Capacity 256 GB
Solid State Storage 1 x 256 GB M.2 NVMe PCIe
Optical Drive SuperMulti DVD Burner
Input/Output Connectors
Ports 2 x USB 3.0 Type-A
1 x USB 2.0 Type-A
Display 1 x HDMI
Audio 1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack
2 x Integrated Microphone
2 x Integrated Speaker
Expansion Slots Not Specified by Manufacturer
Media Card Slots SD/SDHC/SDXC
MMC
Communications
Network 10/100/1000 Mbps Gigabit Ethernet (RJ45)
Modem None
Wi-Fi 802.11ac
MU-MIMO Support 2 x 2
Bluetooth Bluetooth 4.1
Mobile Broadband None
GPS None
NFC None
Webcam User-Facing: 720p Video
Battery
Chemistry Lithium-Ion
Watt Hours / Type 41 Wh
Cells 4
Output Voltage Not Specified by Manufacturer
Maximum Runtime Not Specified by Manufacturer
Power Requirements Not Specified by Manufacturer
Power Supply 1 x 90 W
General
Operating System Windows 10 Pro (64-Bit)
Security Infineon TPM Software Professional Package, Fingerprint Reader
Keyboard Type: Standard Notebook Keyboard
Pointing Device TouchPad & TrackPoint
Dimensions (W x H x D) 14.9 x 1.0 x 10.3" / 378.5 x 25.4 x 261.6 mm
Weight 5.07 lb / 2.30 kg
Warranty Length Limited 1-Year Warranty
