Product Description

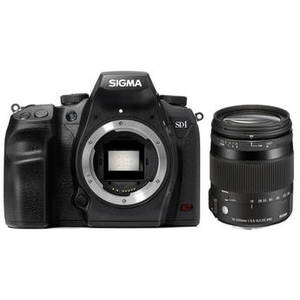

Sigma's SD1 Merrill DSLR Camera, available here with an 18-200mm Lens is the company's flagship DSLR, renamed to honor the great Richard "Dick" Merrill, the co-creator of Foveon X3 Direct Image Sensor technology. The most outstanding feature of the SD1 Merrill is this APS-C sized X3 CMOS sensor, which uses three layers of 4800 x 3200 pixels to produce a 46MP full color sensor. Also, this kit bundles in the versatile 18-200mm f/3.5-6.3 II DC OS HSM Lens, which provides an outstanding equivalent range of 27-300mm, making sure you are ready for nearly everything.
Using the True II image processing software, the SD1 Merrill delivers high-resolution images processed quickly with high definition and a smooth and subtle graduation of color. RAW file sizes range up to 45MB. These impressive features are housed in a lightweight weather-resistant solid magnesium-alloy body built to take the bumps and shocks of the real world. A pentaprism viewfinder and a high-resolution (460,000 dots) LCD monitor give you options for composing, focusing and reviewing your images.
A panoply of features includes shutter speeds up to 1/8000 sec, seven different color modes, continuous shooting at up to 6 fps, a built-in pop-up flash, and sensitivity up to 6400 ISO. The SD1 Merrill has a 1.5x crop factor (compared to 35 mm or full-frame cameras). Sigma SA mount lenses are compatible with the SD1 Merrill.
Using the True II image processing software, the SD1 Merrill delivers high-resolution images processed quickly with high definition and a smooth and subtle graduation of color. RAW file sizes range up to 45MB. These impressive features are housed in a lightweight weather-resistant solid magnesium-alloy body built to take the bumps and shocks of the real world. A pentaprism viewfinder and a high-resolution (460,000 dots) LCD monitor give you options for composing, focusing and reviewing your images.
A panoply of features includes shutter speeds up to 1/8000 sec, seven different color modes, continuous shooting at up to 6 fps, a built-in pop-up flash, and sensitivity up to 6400 ISO. The SD1 Merrill has a 1.5x crop factor (compared to 35 mm or full-frame cameras). Sigma SA mount lenses are compatible with the SD1 Merrill.
| Imaging | |
| Lens Mount | Sigma SA |
| Camera Format | APS-C / (1.5x Crop Factor) |
| Pixels | 46 Megapixel |
| Max Resolution | 46 MP: 4800 x 3200 |
| Aspect Ratio | 4:3 |
| Sensor Type / Size | CMOS, 23.5 x 15.7 mm |
| File Formats | Still Images: JPEG, RAW |
| Bit Depth | 12-Bit |
| Memory Card Type | CompactFlash |
| Focus Control | |
| Focus Type | Auto |
| Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S) |
| Viewfinder/Display | |
| Viewfinder Type | Pentaprism |
| Viewfinder Coverage | 98% |
| Viewfinder Magnification | Approx. 0.95x |
| Diopter Adjustment | -3 to +1.5 m |
| Display Screen | 3" Rear Screen LCD (460,000) |
| Screen Coverage | 100% |
| Exposure Control | |
| ISO Sensitivity | 100-6400 |
| Shutter | 30 - 1/8000 Second |
| Metering Method | Center-Weighted Average Metering, Multi-Zone Metering, Spot Metering |
| Exposure Modes | Modes: Aperture Priority, Manual, Program, Shutter Priority Compensation: -3 EV to +3 EV (in 1/3 EV Steps) |
| Buffer/Continuous Shooting | Up to 5 fps at 46 MP for up to 7 Frames |
| White Balance Modes | Auto, Flash, Fluorescent, Incandescent, Manual, Overcast, Shade |
| Flash | |
| Flash Modes | Flash On |
| Built-in Flash | Yes |
| Max Sync Speed | 1 / 180 Second |
| External Flash Connection | Hot Shoe |
| AV Recording | |
| Video Format | Not Specified by Manufacturer |
| Max Video Clip Length | Not Specified by Manufacturer |
| Performance | |
| Connectivity | AV Output USB 2.0 |
| Power | |
| Battery | 1 x BP-21 Rechargeable Lithium-Ion Battery Pack |
| AC Power Adapter | SAC-4 (Optional) |
| Physical | |
| Dimensions (W x H x D) | 5.7 x 4.4 x 3.1" / 14.5 x 11.2 x 7.9 cm |
| Weight | 24.7 oz / 700.2 g Without batteries and memory card |
| Kit Lens | |
| Focal Length | 18 - 200mm Comparable 35mm Focal Length: 27 - 300 mm |
| Aperture | Maximum: f/3.5 - 6.3 Minimum: f/22 |
| Angle of View | 76.5° - 8.1° |
| Minimum Focus Distance | 17.72" (45 cm) |
| Maximum Reproduction Ratio | 1:4 |
| Elements/Groups | 18 / 14 |
| Diaphragm Blades | 7 |
| Autofocus | Yes |
| Image Stabilization | Yes |
| Filter Thread | Front: 62 mm |
| Dimensions (DxL) | Approx. 2.96 x 3.45" (75.3 x 87.7 mm) |
| Weight | 1.08 lbs (490 g) |
