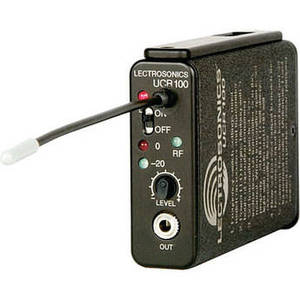

100 Series - UHF Portable Receiver (Frequency Block 24)
Product Description
The Lectrosonic UCR100 is a compact wireless microphone receiver designed for easy, convenient operation with smaller DV camcorders, without sacrificing the quality that has become commonplace with Lectrosonic. The UCR100 offers over 256 selectable frequencies over a 25.6 MHz band to avoid interference from local RF sources. Matching transmitters provide a full 100mW of output power, resulting in clean frequency transmission without virtually any drop-outs.
In addition to the conveniently compact size of the receiver, an easy access audio output adjustment knob is located in the front panel. The UCR100 output operates nominally at 0dBv (line level), but use with microphone inputs on camcorders can be achieved with an optional adapter cable. Frequency selection is achieved via recessed rotary switches located on the side panel. The UCR100 is 9 Volt battery powered and enclosed in a lightwieght, durable, machined aluminum housing.
| Type of Receiver | UCR100 UHF Frequency agile Receiver |
| RF Carrier Frequency Range | 537.6 to 608 MHz, 614 to 793.5 MHz (in 10 blocks) |
| Approx. Working Range | 300 feet in adverse conditions 1,000 feet in ideal conditions |
| Overall Frequency Response | 50Hz to 18kHz (+/- 2dB) |
| Signal-to-Noise Ratio | 105 dB (overall system) |
| # Of Channels | 256 per block (using 26 MHz wide band) |
| Type of Outputs | 1/8" Mini connector |
| Headphone Monitoring | No |
| Power Requirements | 60 mA |
| Battery Type/Approx. Life | 8 Hours with 9V alkaline battery 15 Hours with 9V lithium battery |
| Display | frequency selection is achieved via rotary dials located on the side of the unit |
| Mounting Options | Camera or Belt Mount |
| Antenna Type | 1/4 wave vertical (fixed) |
| Dimensions (HxWxD) | 3.6 x 2.4 x 0.8" (91.44 x 60.96 x 2.032mm) |
| Weight | 7.3 oz (with battery) |
