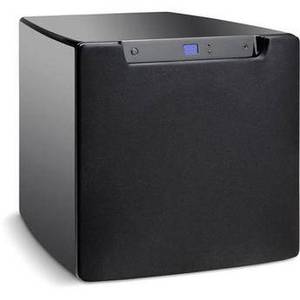

Optimum-10 Digital EQ Subwoofer (Gloss Black Lacquer)


From Velodyne | Model #: VEO10GB



See more in


Optimum-10 Digital EQ Subwoofer (Gloss Black Lacquer)

Product Description

The advent of unparalleled bass reproduction and exquisite craftsmanship is at your fingertips with the Velodyne Optimum-10 Digital EQ Subwoofer. Designed and built with both home theater pundits and high profile audio connoisseurs in mind, it combines unsurpassed clarity and functionality by incorporating Energy Recovery System (ERS), Dynamic Drive Control System (DDCS), and DSP digital control technologies. It features an active 10" front-firing resin cone with Kevlar reinforcement, dual layer 3" voice coil, 346 oz magnet structure, and 1200W RMS/2400W peak power Class D digital amplification. This powerful design enables it to reproduce the tightest "punch" at the highest sound levels in its class.

Moreover, this dynamic subwoofer will take your audio listening experience to a whole new level. The Optimum-10 offers an adjustable low-pass crossover, high-pass crossover, 13 - 240Hz frequency response, RCA line-level input/output, LFE input, and speaker-level inputs with 5-way binding posts. Enjoy the convenience of (4) customized listening modes, one-button 7-Band EQ room correction system, intuitive front-panel LCD display, Auto Turn On function, IR remote compatibility, and conscience minded Night Mode function.

With its hand-rubbed black gloss lacquer finish and cube-style design, magnetic video shielding, the Velodyne Optimum-10 is an ideal solution for home theater, whole house audio systems, and anywhere high quality, powerful bass projection is required.

Sub-Woofer
Type Active
Power Rating 1200W RMS/2400W Peak
Frequency Response 13 - 240Hz (Overall), 23 - 120Hz (±3dB)
Crossover Frequency Low-Pass 40 - 120Hz (12dB octave, 24dB Ultimate) Adjustable
Phase 0°, 90°, 180°, 270° (Adjustable)
Magnetic Characteristics 346 oz (21.6 lbs)
Impedance N/A
Drivers 10" (254mm) Resin Cone
8" (203.2mm) Piston
Voice Coil Dual Layer 3" (76.2mm)
Enclosure Sealed
Inputs Speaker Level, Line Level (RCA), LFE
Outputs Speaker Level (80Hz High-Pass Crossover)
Other IR Input, 12V Trigger Input
Shielded Yes, Magnetic
Construction Not Specified By Manufacturer
General
Dimensions (HxWxD) 13.5 x 13 x 16" (342.9 x 330 x 406.4mm)
Shipping Weight 43 lbs (20kg)
Power Requirements 120VAC, 60Hz
Color Gloss Black
