Product Description

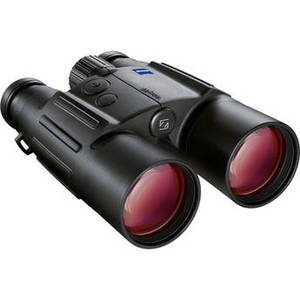

Relying upon large 56mm objectives to deliver maximum light transmission and resolution, the Victory RF's optical path also features distortion-free, phase-corrected roof prisms for enhanced clarity and accuracy. All of the lenses are fully multi-coated with ZEISS' T* anti-reflection coatings, while the external lens surfaces are treated with a layer of water-repellent LotuTec coating to ensure clear viewing in any conditions.
The RF's housing is constructed to survive and thrive in the field - it's formed from magnesium for enhanced durability, and it's treated with a special anti-corrosion coating. A protective covering of a durable rubber armoring ensures a no-slip grip. During the final assembly, the binocular is sealed and then filled with a charge of bone-dry nitrogen for reliable waterproof and fogproof performance.
The rangefinder and the BIS ballistics program are activated via two buttons located on the top of the housing. Distances and bullet-drop data are displayed in the field of view in an LED readout that self-adjusts its brightness against ambient lighting conditions.
| Prism Type | Roof |
| Magnification | 10x |
| Objective Lens Diameter | 56mm |
| Angle of View | 6.3° (actual) |
| Field-of-View | 330.0' @ 1000 yd / 109.6 m @ 1000 m |
| Minimum Focus Distance | 16.4' / 5.00 m |
| Exit Pupil Diameter | 5.6 mm |
| Eye Relief | 16.0 mm |
| Interpupillary Adjustment | 57.0 - 76.0 mm / 2.2 - 3.0" |
| Dioptric Correction | ±3.5 |
| Focus Type | Center |
| Tripod Mount | None |
| Dimensions | 7.5 x 5.47 x 2.56" / 19.05 x 13.89 x 6.50 cm |
| Weight | 40.6 oz / 1151 g |
