Product Description

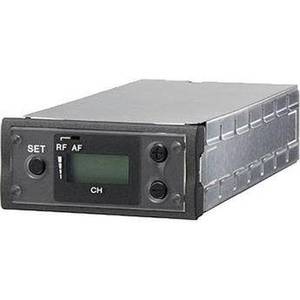

The Sony URX-M2 Tuner Module is a wireless microphone UHF receiver, specifically designed to install into Sony tuner bases. Among some of the compatible tuner bases are the MB-X6 and MB806A, and SRP-X700P, SRP-X500P, SRP-X351P powered mixer units.
| Type of Receiver | Modular Tuner for MB806A Tuner Base |
| RF Carrier Frequency Range | 42/45 (638 to 662 MHz) |
| Approx. Working Range | 400' |
| Overall Frequency Response | 100 - 15kHz |
| Signal-to-Noise Ratio | +60 dB (A weighted) |
| # Of Channels | 188 |
| Type of Outputs | MB806A Tuner - 6 Individual Balanced XLR Outputs and 1 Balanced XLR 'Mix' Output (switchable mic/line) |
| Headphone Monitoring | No |
| Power Requirements | AC 120v |
| Battery Type/Approx. Life | Not Applicable, Unit Does NOT Operate on Batteries |
| Display | LCD Display Found on Each Optional WRU806A Wireless Receiver Modules |
| Mounting Options | MB806A Tuner - Rack/Table Top Mount |
| Antenna Type | Passive Antennas with BNC-R Type Connectors |
| Dimensions (WxHxD) | 2.23 x 1.0 x 4.76" (56.6 x 25.5 x 121mm) |
| Weight | 5.3 oz. (150g) |
